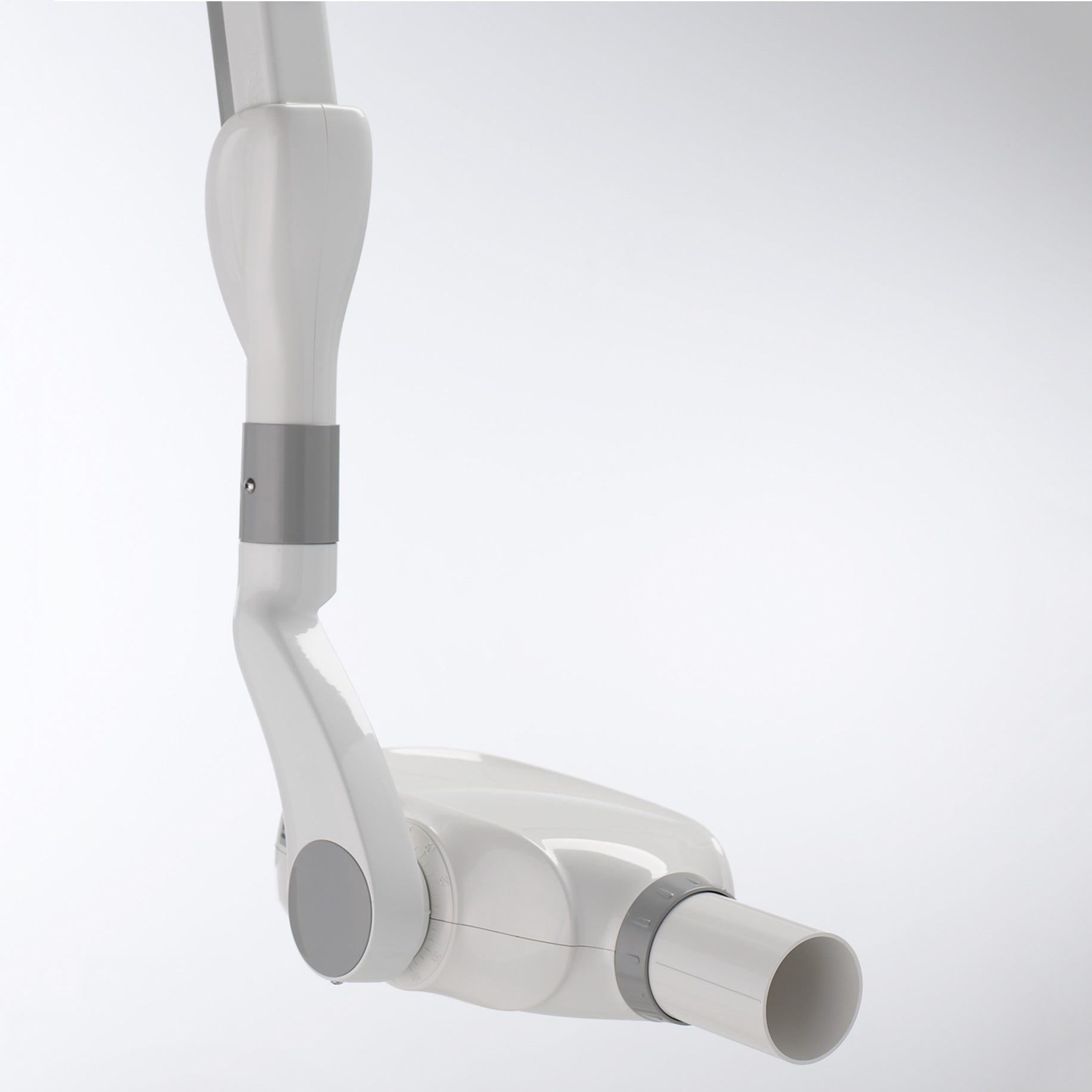

Phot-X II DC X-Ray with Mobile Base

Product Code : QWB276

Supplier Code : 303FM

Phot-X II is very user-friendly and simple to operate safely. Radiographer can use the adult/ adolescent/child presets or manually override these settings for more challenging exposures.

DC X-Ray, compatible with all digital systems and film types, switches between digital and film at the push of a button. The Radiographer has greater control over the program and over-exposure error is easily avoided with an expansive range of exposure settings (0.01 to 3.2 seconds).

\n
• Engineered for accurate positioning
\n
• Compact, lightweight (4kg) tube head for easiest handling
\n
• Compact control panel - smooth, single piece membrane for easy cleaning.
\n
• Lockable keypad and 'manual overide' ensures greater safety in the working environment
\n
• Angle indicator
\n
• Tube voltage 60kV or 70kV
\n
• Tube current 4mA or 7mA
\n
• Focal spot 0.7mm
\n
• Exposure time 0.01 to 3.2 seconds
\n
• Cone length 203mm
\n

Includes: Rectangular Collimator and Hand Exposure Switch Assembly. Mobile Base.
