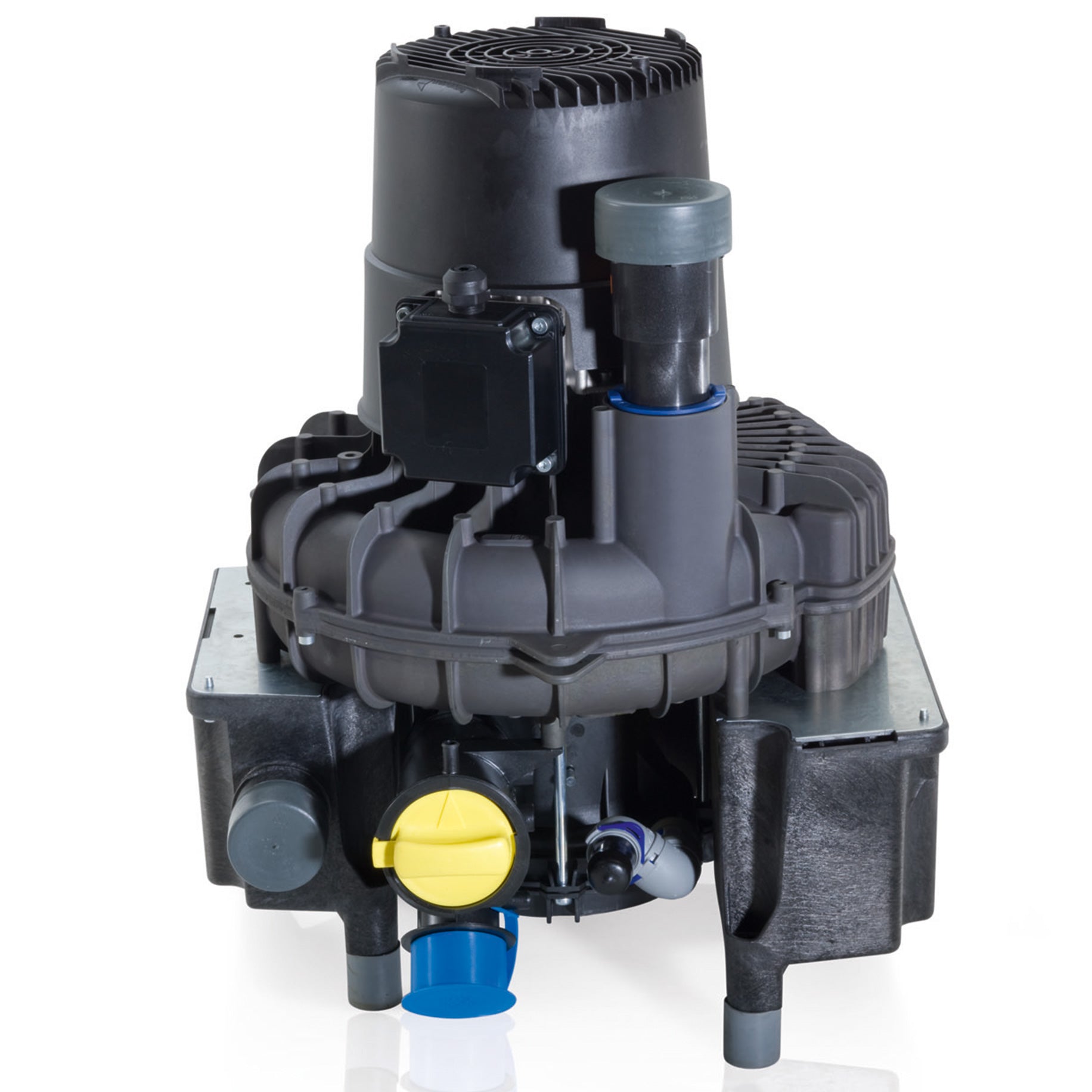

VS 900 S Suction Motor

For three operators and five treatment rooms.

Operators = Number of treatment stations with simultaneous operation

Rooms = Number of stations that can be connected with simultaneity factor 60%

• Voltage (V 1~/V 3~) 230/400
• Frequency (Hz) 50
• Current consumption (A) 7.4/3.6
• Power (kW) 1.68/1.8
• Vacuum (mbar) AAV 170
• Speed (rpm) 2,850
• Max. fluid flow rate (l/min) 16
• Cyclic duration factor (S1) 100 %
• Noise level without housing dB(A) approx. 65
• Noise level with housing dB(A) approx. 58
• Dimensions without housing (H x W x D cm) 55 x 41 x 42
• Dimensions with housing (H x W x D cm) 55 x 49 x 53
• Weight without housing (kg) 33
• Weight with housing (kg) 49
